DWE7485-GB

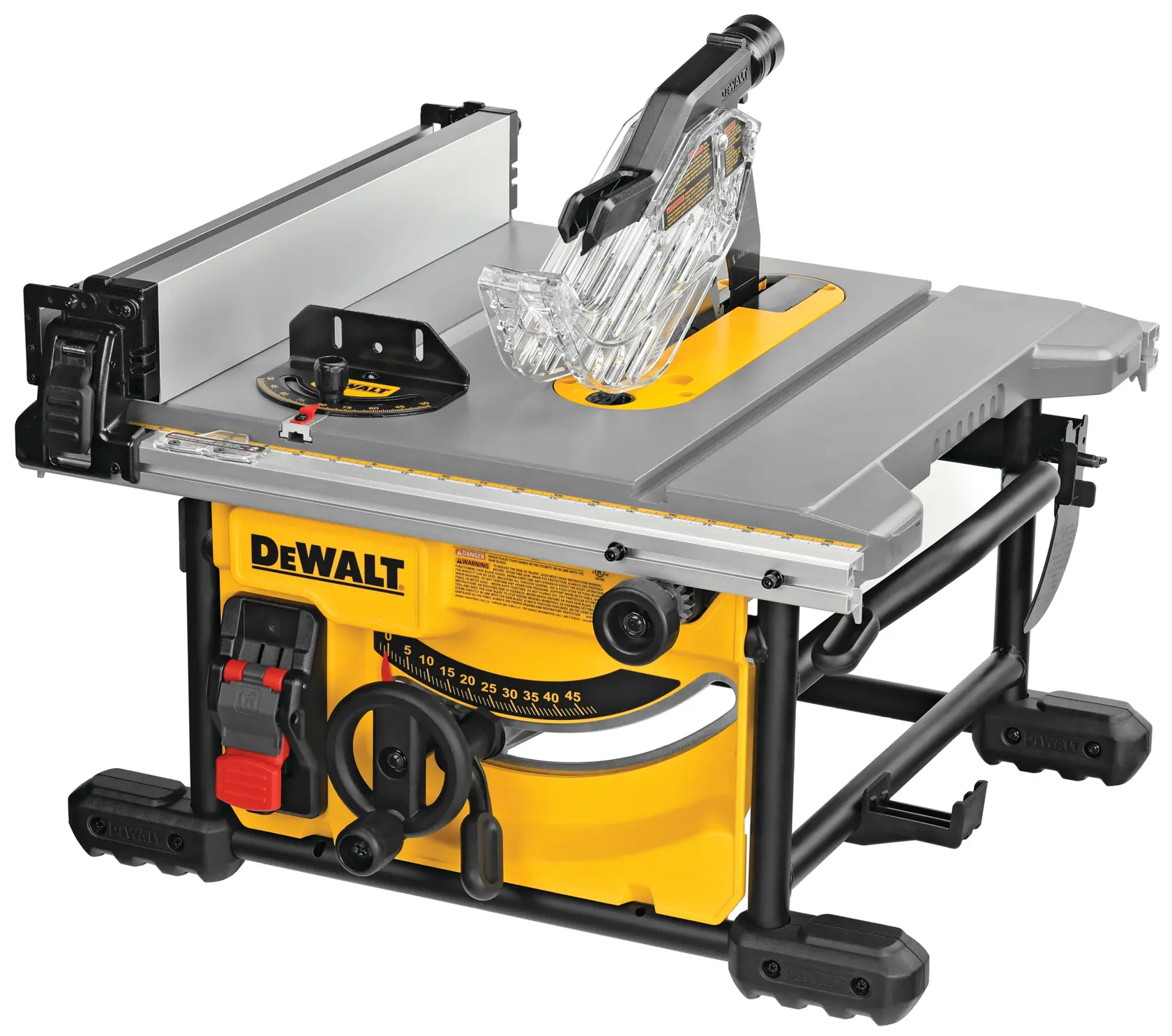

210mm Compact Table Saw
Reviews
Product details
maximized for accuracy and capacity, this 210mm Table Saw includes on-board storage for the blade guard assembly, non-through cut riving knife, anti-kickback pawls, blade-change wrenches, mitre gauge, and push stick. The powerful 1850W, 5800 rpm motor allows users to complete a majority of applications. The rack & pinion fence allows for accurate, fast adjustments and provides the capacity to rip 8x4 sheet materials. 240V mains powered.
- Powerful 1850w Motor : High performance in all applications
- Large Rip Capacity : 622mm rip capacity right of blade, and 318mm left of blade
- Compact Design : 22kg weight and optimized footprint make this a super portable saw

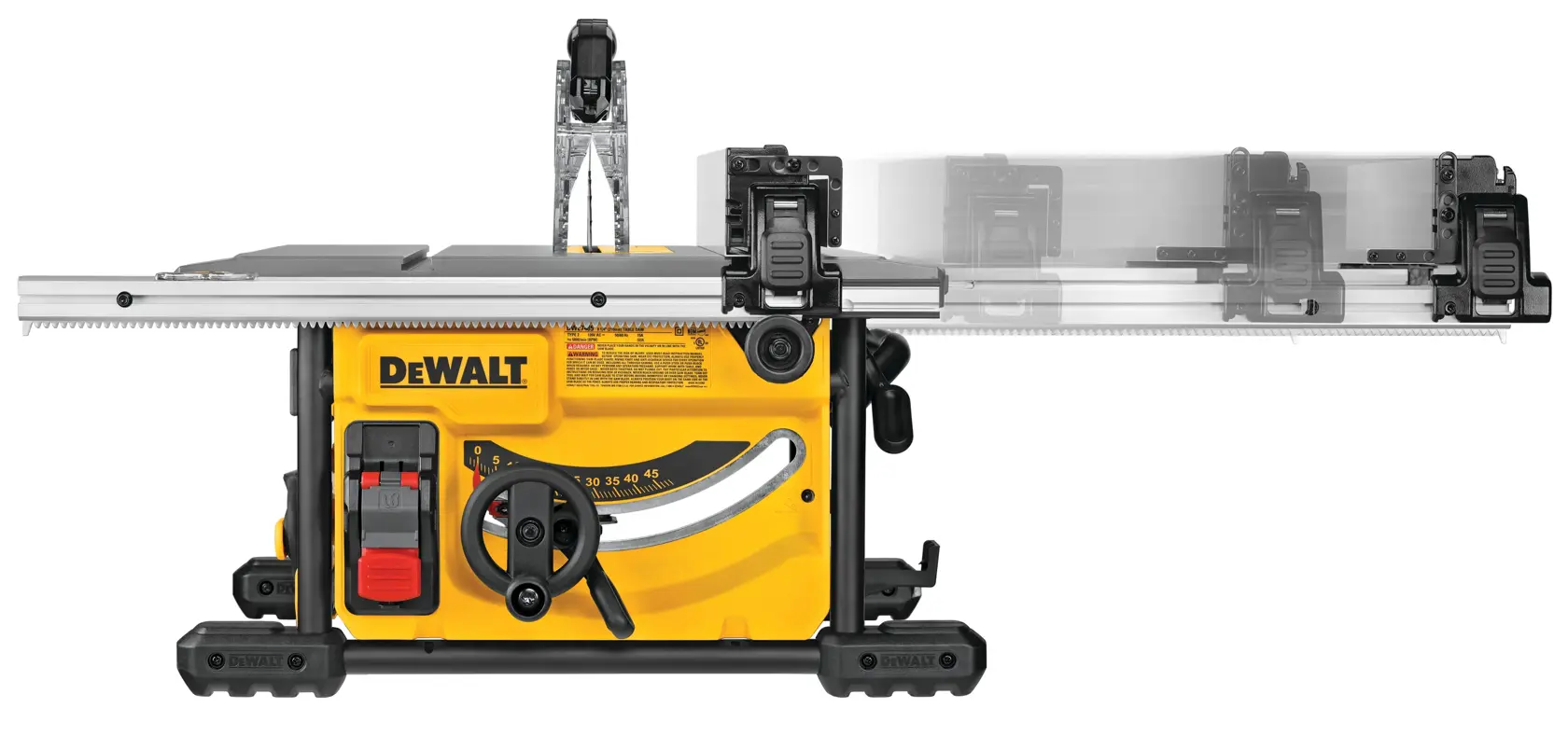

- Rack & Pinion Fence : Front and rear fence lock, with a large clear scale for an extremely accurate and easy to use saw
- Steel Roll Cage : Protects against jobsite drops and impacts
- Cast Table Top : Designed to ensure accuracy and precision
- Simple Bevel Lock : Quick bevel lock with large scale for easy, accurate adjustments
- 3 Year Guarantee : Tool covered by extended warranty, subject to registration
Product Type
Table Saw
Cordless or Corded
Corded
Power Source
Electric
Motor Type
Brushed
Total Number of Batteries
0
- (1) 210mm Compact Table Saw
- 1 Year Limited Warranty, 3 Year Limited Warranty When Registered
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
Customer SupportDownloads
Instruction Manual, Type 3
DWE7485-TYP3_EUR.pdf
PDF
Instruction Manual, Type 3
DWE7485-TYP3_GB_XE.pdf
PDF
Instruction Manual, Type 3
NA377601_DWE7485_GB_XE.pdf
PDF
Instruction Manual, Type 3
NA777321_DWE7485_GB_XE_LX.pdf
PDF
Exploded Diagram, Type 3
E20807.svg
SVG
Exploded Diagram, Type 3
E20808.svg
SVG
Exploded Diagram, Type 3
E20808_UPDATED.svg
SVG
Exploded Diagram, Type 3
E20807_2024-11-07.svg
SVG
