DW088K-BQ
Cross Line Red Laser
Reviews
Product details

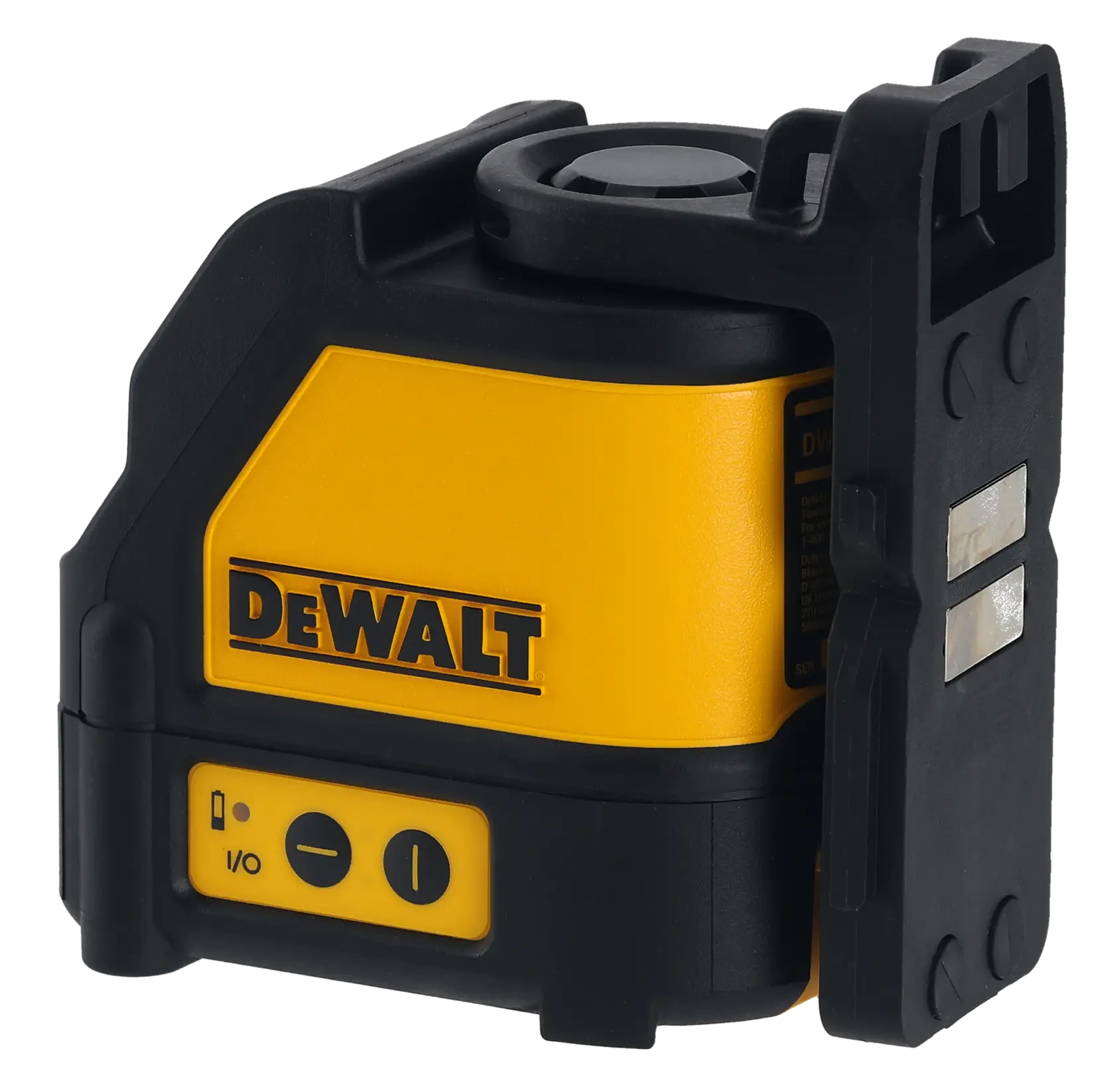

This red cross line laser projects bright crossing horizontal and vertical lines for various leveling and layout applications. It is built tough with an over molded housing and can withstand up to a 1 meter drop. When used with a detector, this laser can achieve up to a 165 ft. range. Detector sold separately.

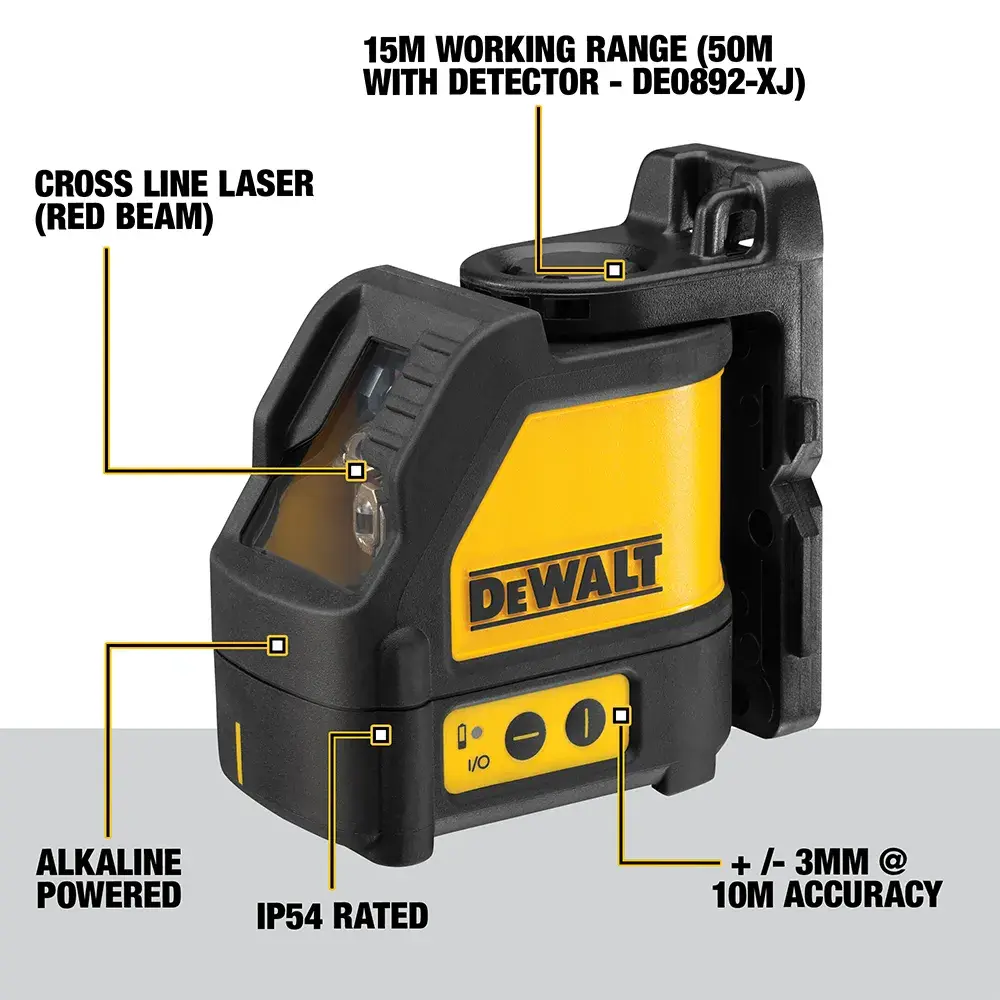

- Working Range : 15m (50m with detector)
- Detector Compatible : Works with de0892 detector
- Durable Design : 1m drop resistance
- Professional Accuracy : +/- 3mm at 10m distance
- Self Levelling Cross Line Laser : Projects bright crossing horizontal and vertical lines
- Integrated Magnetic Pivoting Base With 1/4" Thread : For flexible mounting options directly onto metal track, with the supplied ceiling bracket, or on a tripod
- Overmolded Housing and Thick Glass : Protects the tool and helps maintain calibration under jobsite conditions

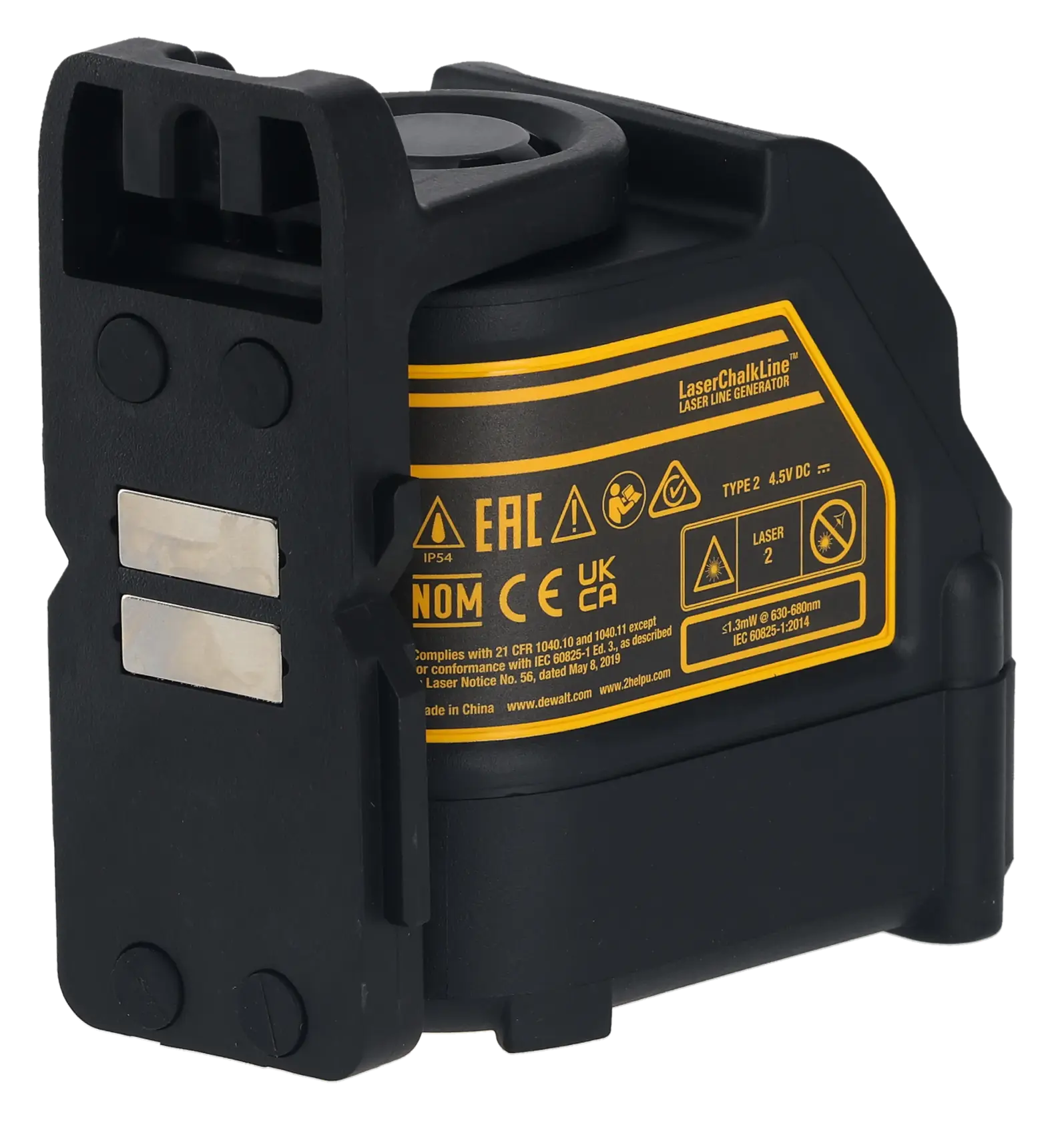

- IP54 Rating : Debris/water resistant for tough jobsite conditions
- Kit Box : Protects unit and helps maintain calibration when stored in gang box
- Self Levelling Up to 4 Degrees Surface Angle With Automatic Out of Level Indication : Marks a levelled line in seconds
Product Type
Line Laser Level
Cordless or Corded
Cordless
Power Source
Disposable Standard Batteries
Total Number of Batteries
3
Charger Included
No

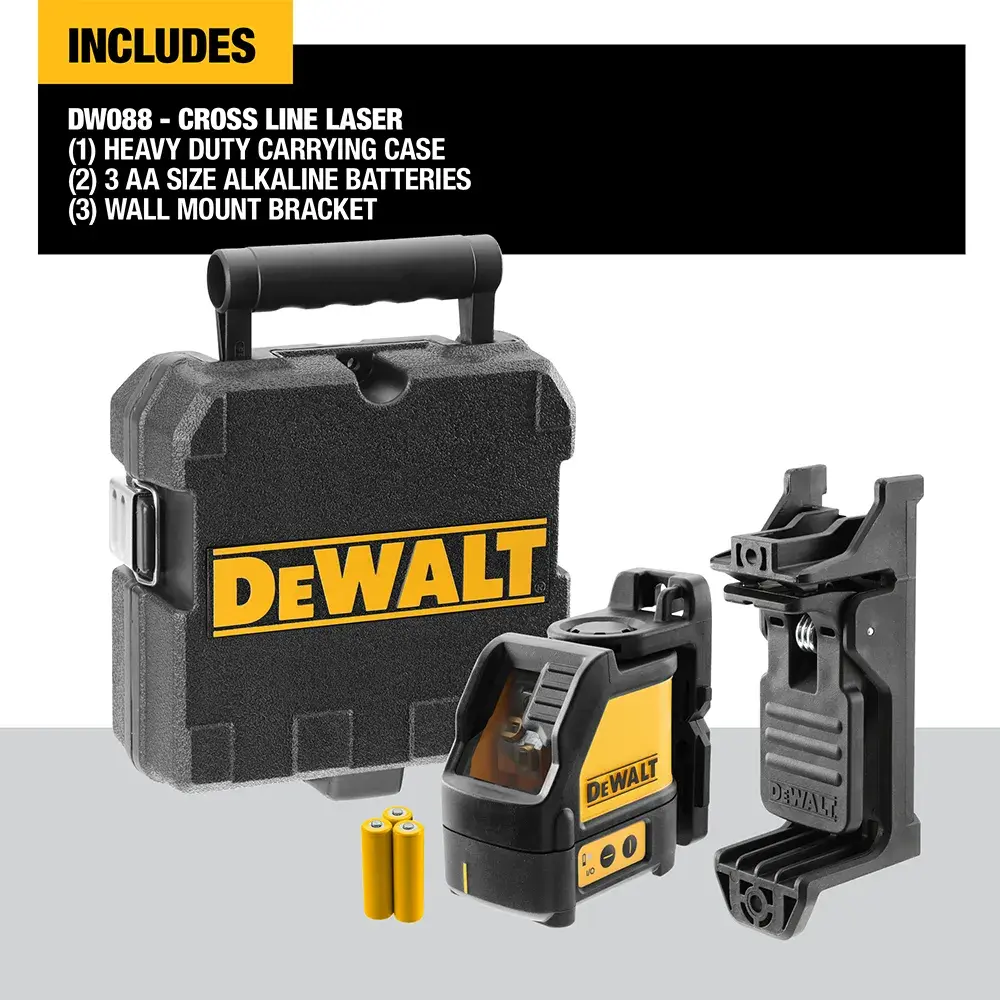

- (1) Heavy duty carrying blow moulded case
- 1 Year Limited Warranty, 3 Year Limited Warranty When Registered
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
Customer SupportDownloads
Instruction Manual, Type 2
DW088_DW088CG_CZ_A5_240123.pdf
PDF
Instruction Manual, Type 2
DW088_DW088CG_EN_RU_UA_191124.pdf
PDF
Instruction Manual, Type 2
NA127863_DW088_DW088CG_T1_EANZ.pdf
PDF
Instruction Manual, Type 2
Producer_Certificate_DW088_DW088CG_DW088LG_DW088LR_DCE088G_DCE088R_Cross_line.pdf
PDF
Instruction Manual, Type 2
NA494273_DW088_DW088CG_T2_EANZ.pdf
PDF
Instruction Manual, Type 2
DW088_HU_A5_191124.pdf
PDF
Instruction Manual, Type 2
DW088_DW088CG_RO_A5_231022.pdf
PDF
Exploded Diagram, Type 2
GIF
